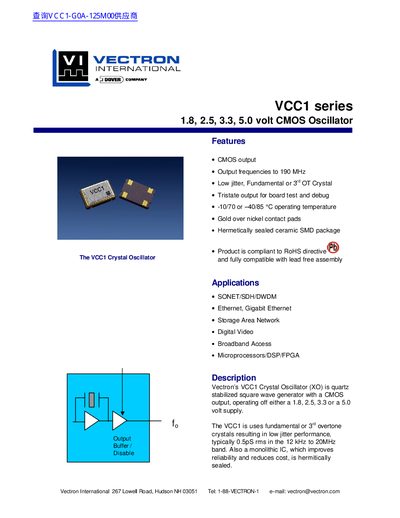

vcc1 series 1.8, 2.5, 3.3, 5.0 volt cmos oscillator
The Vectron VCC1 Crystal Oscillator is a quartz-stabilized square wave generator with a CMOS output, designed to operate off supply voltages of 1.8, 2.5, 3.3, or 5.0 volts. It utilizes fundamental or 3rd overtone crystals to achieve low jitter performance and features a hermetically sealed ceramic SMD package for reliability.
| Output frequencies | to 190 MHz |
|---|---|
| Operating temperature | -10/70 or -40/85 °C |
| Supply Current (Enabled, <20 MHz) | 7 mA (at 5V) |
| RMS Jitter | 0.5 ps (12kHz to 20MHz) |
The device operates off either a 1.8, 2.5, 3.3 or a 5.0 volt supply.
The typical start-up time for the VCC1 oscillator is 10 ms.
