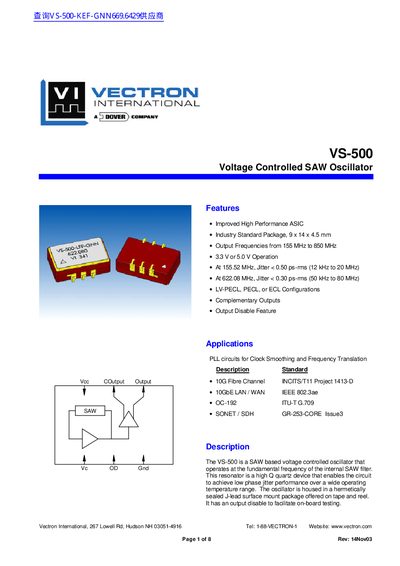

The VS-500 is a SAW-based voltage-controlled oscillator that operates at the fundamental frequency of the internal SAW filter. This resonator is a high-Q quartz device that enables the circuit to achieve low phase jitter performance over a wide operating temperature range. The oscillator is housed in a hermetically sealed J-lead surface mount package offered on tape and reel. It has an output disable to facilitate on-board testing.
The VS-500 is a SAW-based voltage controlled oscillator designed for PLL circuits requiring clock smoothing and frequency translation. It operates at fundamental frequencies between 155 MHz and 850 MHz and supports both 3.3 V and 5.0 V operation. The device features an output disable function to facilitate on-board testing and is housed in a hermetically sealed J-lead surface mount package.
| Output Frequencies | 155 MHz to 850 MHz |
|---|---|
| Operating Voltage | 3.3 V or 5.0 V |
| Package Size | 9.0 x 14.0 x 4.5 mm |
| Operating Temperature | -40 to 85 °C |
| Jitter @ 155.52 MHz | < 0.50 ps-rms (12 kHz to 20 MHz) |
| Jitter @ 622.08 MHz | < 0.30 ps-rms (50 kHz to 80 MHz) |
The standard frequencies include 155.52 MHz, 622.08 MHz, and others defined in the ordering information.
The VS-500 is a SAW based voltage controlled oscillator that operates at fundamental frequencies from 155 MHz to 850 MHz.
The device supports operation at either 3.3 V or 5.0 V.
The oscillator is housed in a hermetically sealed J-lead surface mount package measuring 9 x 14x 4.5 mm.
