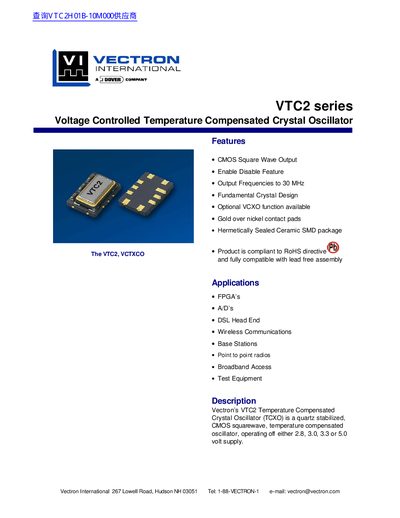

VTC2 temperature compensated crystal oscillator is a quartz stabilized, CMOS squarewave, temperature compensated oscillator, operating off either 2.8, 3.0, 3.3 or 5.0 volt supply.
This document is a technical datasheet for the Vectron International VTC2 series, which are CMOS square wave temperature compensated crystal oscillators. The devices operate from 10 MHz to 30 MHz and can be powered by either 3.3V or 5.0V supplies.
| Frequency Range | 10.000 to 30.000 MHz |
|---|---|
| Supply Voltage Options | 2.8V, 3.0V, 3.3V or 5.0V |
| Maximum Supply Voltage | 6 Vdc |
| Supply Current (at +3.3V) | 10 mA |
| Output Load | 15pF |
| Temperature Stability | +0.5 to 45.0 ppm |
The control voltage pull range is +5 to +8 ppm.
Yes, the VTC2 can be ordered with a VCXO function for applications requiring fine tune adjustments.
It is recommended to use a 0.01uF and a 0.1uF capacitor located as close to the supply as possible.
