This product is a frequency translator that can translate input frequencies from 8kHz to 19.440MHz to any specific frequency from 170MHz to 777.6MHz.

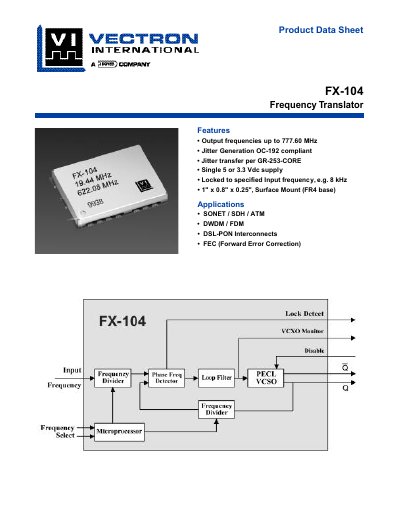

The FX‑104 Frequency Translator is a surface‑mount device that uses SAW technology to translate a wide range of input frequencies to a selectable output frequency. It supports single‑supply operation at 5 V or 3.3 V, provides PLL control voltage monitoring, and meets stringent jitter specifications.
Typical applications include SONET/SDH/ATM, DWDM/FDM, DSL‑PON interconnects, and forward error correction (FEC) systems. The device is offered in a 1.0" × 0.8" × 0.25" package and can be ordered with up to four programmable input frequencies.
| Output frequency range | 170 MHz – 777.6 MHz |
|---|---|
| Supply voltage | 5 Vdc or 3.3 Vdc |
| Supply current | 95 mA – 125 mA |
| Operating temperature | 0 °C to +70 °C (C) / -40 °C to +85 °C (F) |
| Jitter generation (rms) | 0.23 ps – 1 ps |
| Package size | 1.0" × 0.8" × 0.25" (25.4 × 20.32 × 6.35 mm) |
The FX‑100 series can handle any input frequency between 8 kHz and 170 MHz.
Each FX‑104 can be programmed to accept up to four different frequencies.
The lock time is significantly less than one second.
