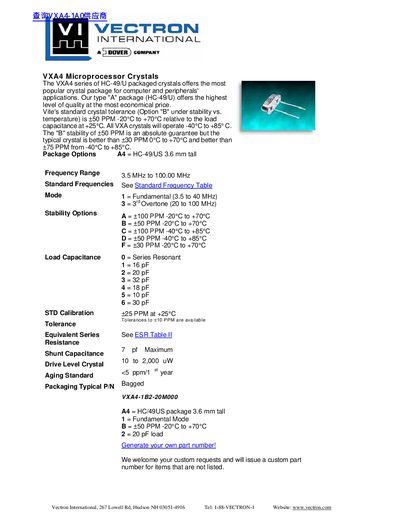

The VXA4 series of HC-49/U packaged crystals offers the most popular crystal package for computer and peripherals' applications.
The VXA4 series offers HC‑49/U (3.6 mm tall) packaged crystals for computer and peripheral applications. The standard "A" package delivers high quality at an economical price, with operating temperatures from -40 °C to +85 °C.
Key specifications include a frequency range of 3.5 MHz to 100 MHz, stability options such as +50 PPM (‑20 °C to +70 °C), and multiple load‑capacitance selections. Custom part numbers and tolerances up to ±10 PPM are also available.
| Package | HC-49/U (3.6 mm tall) |
|---|---|
| Frequency Range | 3.5 MHz to 100.00 MHz |
| Operating Temperature | -40 °C to +85 °C |
The VXA4 crystals cover frequencies from 3.5 MHz up to 100 MHz.
They are supplied in an HC‑49/U package that is 3.6 mm tall.
