The document describes the features and characteristics of Intel's SmartVoltage FlashFile™ memory family, including different density options, high performance, enhanced data protection features, automated suspend options, industry-standard packaging, high-density erase block architecture, extended cycling capability, low power management, and automated program and block erase command interface.

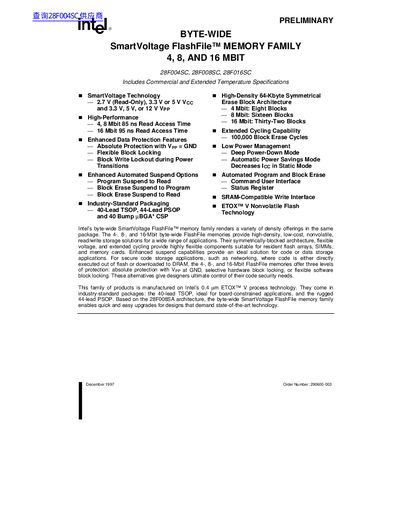

This datasheet covers the Intel Byte-Wide SmartVoltage FlashFile memory family, specifically the 4, 8, and 16 Mbit densities (models 28F004SC, 28F008SC, and 28F016SC). The document details the product's high-performance architecture, which includes symmetrical block erasing and flexible voltage configurations for read, erase, and program operations.
| Memory Density | 4, 8, and 16 Mbit |
|---|---|
| Read Access Time (4, 8 Mbit) | 85 ns |
| Read Access Time (16 Mbit) | 95 ns |
| Block Erase Cycles | 100,000 |
| Technology Process | 0.4 um ETOX V |
| Package Types | 40-Lead TSOP, 44-Lead PSOP |
| Vcc Voltage Options | 2.7 V, 3.3 V, 5 V |
| Vpp Voltage Options | 3.3 V, 5 V, 12 V |
The family includes the 28F004SC, 28F008SC, and 28F016SC models.
The devices support 100,000 block erase cycles.
Yes, with the 3.3 V and 5 V Vpp option, Vcc and Vpp can be tied together for a simple design.
