This is a user manual for the TCON-300S 3x extension lens, which mainly includes the composition, installation method, and shooting method of the product

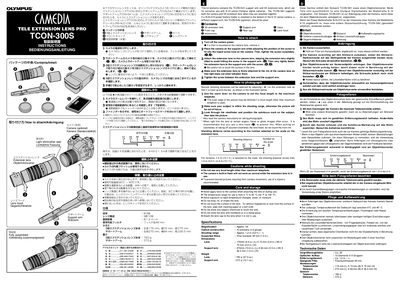

This document provides instructions for the Olympus TCON-300S Tele Extension Lens Pro kit. The kit includes a 3X extension lens (TCON-B00) and a support arm (TCON-SA1), designed exclusively for use with Olympus E-10 series digital cameras. It also details an optional alternative support arm, TCON-SA2, required when using the B-HLD10 power battery holder.
| Magnification | Approx. 3X |
|---|---|
| Optical construction | 10 elements in 9 groups |
| Shooting range | Approx. 1.2m ~ infinity |
| Supported filters diameter | 49 mm |
| Lens dimensions | 176mm (L) X 72mm (W) X 75mm (H) |
| Support arm dimensions | 270mm (L) X 84mm (W) X 26.5mm (H) |
| Lens weight | 780 g |
The kit is for exclusive use with E-10 series Olympus digital cameras.
Use the TCON-SA2 if a B-HLD10 power battery holder is attached to the bottom of the camera.
You must use the maximum telephoto focal length on the camera.
