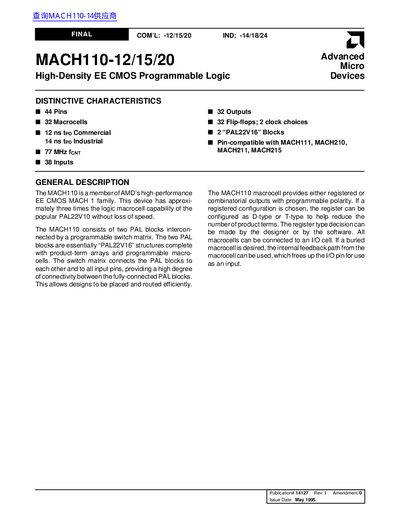

This data sheet provides the features and characteristics of AMD MACH110-12/15/20 high-density EE CMOS programmable logic. This device has approximately three times the logic macrocell capability of the popular PAL22V10 without loss of speed.
The MACH110 is a member of AMD's high-performance EE CMOS MACH 1 family, offering approximately three times the logic macrocell capability of the PAL22V10 without loss of speed. The device consists of two PAL blocks interconnected by a programmable switch matrix, allowing for efficient design placement and routing.
| Clock Frequency (Commercial) | 77 MHz |
|---|---|
| Step Time (Commercial -12) | 12 ns |
| Supply Voltage Range (Commercial) | +4.75 V to +5.25 V |
| Operating Temperature Range (Commercial) | 0°C to +70°C |
The device has approximately three times the logic macrocell capability of the popular PAL22V 10 without loss of speed.
The product-term array consists of 64 product terms for logic use, and 6 special-purpose product terms.
