HS-26CT32RH-T is a Quad Differential Line Receiver produced by Intersil. It is of QML Class T and has been fully tested. It can work normally under a total dose of 100kRAD. The product is designed for digital data transmission over balanced lines and meets the requirements of EIA Standard RS-422. The Radiation Hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments.
The document provides technical details for the Intersil HS-26CT32RH-T, a Quad Differential Line Receiver designed for digital data transmission over balanced lines. It meets the requirements of EIA Standard RS-422 and is guaranteed to 100kRAD total dose using Radiation Hardened CMOS processing.

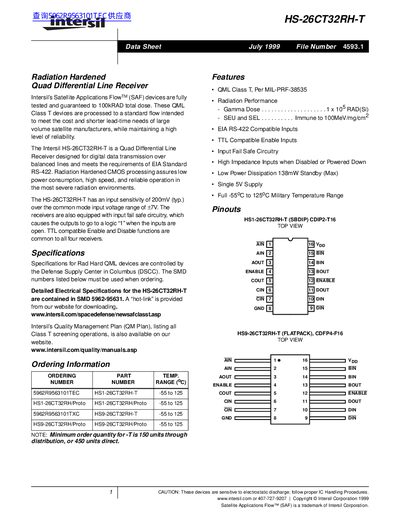

The datasheet includes ordering information for various temperature ranges, key features such as TTL compatible enable inputs and input fail safe circuitry, pinout diagrams for SBDIP and CDFP packages, a functional diagram with truth tables, and die characteristics including dimensions and transistor count.
| Total Dose Guarantee | 100kRAD |
|---|---|
| Input Sensitivity | 200mV (typ.) |
| Common Mode Input Voltage Range | +7V |
| Supply Voltage | Single 5V Supply |
| Operating Temperature Range | -55°C to 125°C |
| Standby Power Dissipation (Max) | 138mW |
The device is fully tested and guaranteed to a total dose of 100kRAD.
The receiver has an input sensitivity of 200mV over its common mode range.
The device has a low power dissipation with a maximum standby rating of 138mW.
