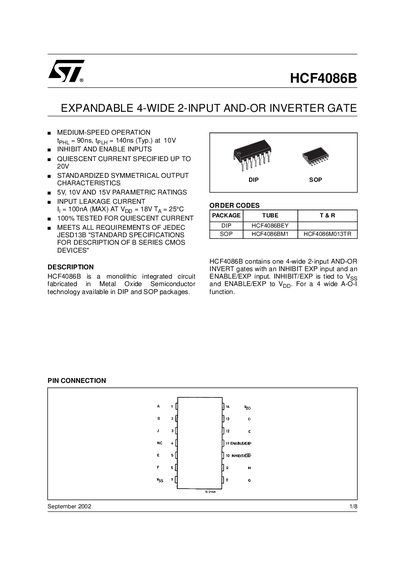

HCF4086B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. HCF4086B contains one 4-wide 2-input AND-OR INVERT gates with an INHIBIT EXP input and an ENABLE/EXP input. INHIBIT/EXP is tied to VSS and ENABLE/EXP to VDD. For a 4 wide A-O-I function.
The HCF4086B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology, available in DIP and SOP packages. It contains one 4-wide 2-input AND-OR inverter gate with an INHIBIT/EXP input and an ENABLE/EXP input. The device is designed for medium-speed operation with standardized symmetrical output characteristics.
| Supply Voltage | 3 to 20 V |
|---|---|
| Operating Temperature | -55 to +125 °C |
| Propagation Delay Time (5V) | 225 ns (Typ.) |
| Quiescent Current (5V) | 0.02 mA (Typ.) |
| Input Capacitance | 7.5 pF (Typ.) |
The typical propagation delay time is 225 ns.
The operating temperature range is -55 to +125 °C.
The maximum supply voltage is 20 V.
The device is available in DIP and SOP packages.
