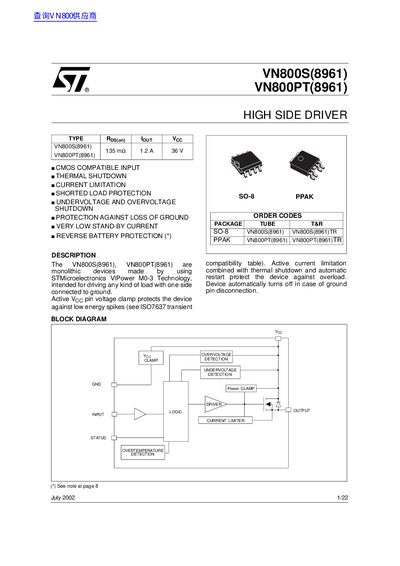

The VN800S(8961) / VN800PT(8961) are monolithic devices made using STMicroelectronics VIPower M0-3 Technology. They are designed for driving loads with one side connected to ground. The devices feature CMOS compatible input, thermal shutdown, current limitation, shorted load protection, undervoltage and overvoltage shutdown, protection against loss of ground, very low standby current, and reverse battery protection.
The VN800S(8961) and VN800PT(8961) are monolithic devices made using STMicroelectronics VIPower MOS-3 Technology. They are intended for driving any kind of load with one side connected to ground, offering features such as CMOS compatible input, thermal shutdown, current limitation, shorted load protection, and reverse battery protection.
| Operating Supply Voltage Range | 5.5 to 36 V |
|---|---|
| DC Short Circuit Current | 1.2 to 2 A |
| Shut-down Temperature | 150 to 200 °C |
The device has an internally limited junction operating temperature.
Yes, the device includes active current limitation combined with thermal shutdown and automatic restart to protect against overload.
