The document describes the features and characteristics of the M54HC125 high-speed CMOS quad buffer (3-state), including high speed, low power dissipation, high noise immunity, symmetrical output impedance, balanced propagation delays, wide operating voltage range, etc.

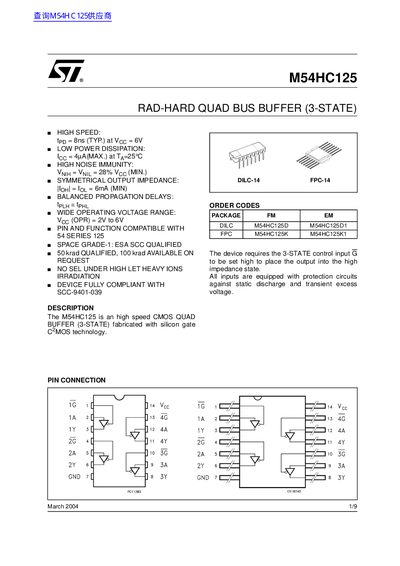

This document is a datasheet for the M54HC125, a high-speed CMOS quad buffer with 3-state outputs. The device is fabricated with silicon gate CMOS technology and is designed for high noise immunity and symmetrical output impedance. It is qualified for space applications, specifically Space Grade-1 (ESA SCC Qualified), and offers a wide operating voltage range from 2V to 6V.
| Operating Voltage Range | 2V to 6V |
|---|---|
| Operating Temperature | -55 to 125 °C |
| Package Type | DILC-14 |
Yes, the device is Space Grade-1 qualified and fully compliant with SCC-9401-039.
The recommended operating voltage range starts at 2V.
Yes, it is pin and function compatible with the 54HC125D and 54HC125D1 series.
