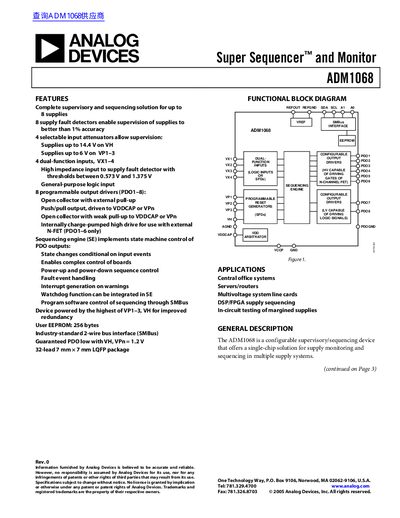

Super Sequencer™ and Monitor ADM1068 Rev. 0 is a complete supervisory and sequencing solution for up to 8 supplies. It features 8 supply fault detectors that enable supervision of supplies to better than 1% accuracy. It also has 4 selectable input attenuators that allow supervision of supplies. It further includes 4 dual-function inputs, 8 programmable output drivers, and a sequencing engine for state machine control of outputs.
The ADM1068 is a single-chip supervisory and sequencing solution designed for multiple supply systems. It features eight supply fault detectors capable of monitoring supplies with better than 1% accuracy and includes four selectable input attenuators to handle voltages up to 14.4 V. The device incorporates eight programmable output drivers (PDOs) that can function as logic enables or drive N-channel FET gates with up to 12 V output.
| Maximum VDDCAP | 5.1 V |
|---|---|
| Reference Output Voltage | 2.048 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 32-lead 7 mm x 7 mm LQFP |
| Clock Frequency | 100 kHz |
The device can monitor supplies up to 14.4 V on the VH pin.
The device features eight programmable output drivers (PDO1-8).
The fault detectors enable supervision of supplies to better than 1% accuracy.
