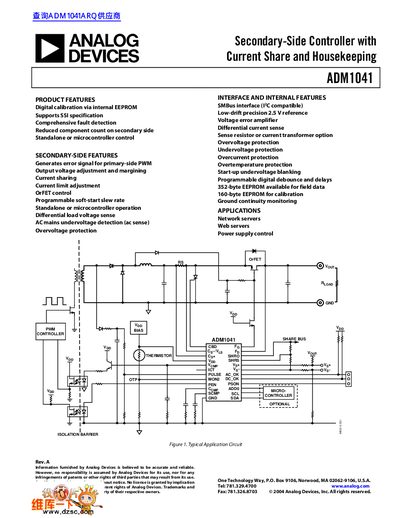

ADM1041 is a secondary-side controller with current share and housekeeping features. It integrates current sharing and management functions, reducing the number of components in the system, lowering costs, and improving efficiency. The device also has a range of protection functions, such as overvoltage protection, undervoltage protection, and overcurrent protection, to ensure safe and stable system operation.
The ADM1041 is a secondary-side and management IC specifically designed to minimize external component counts and eliminate the need for manual calibration. It is intended for use in single output N+1 server power supplies to provide voltage control, current sharing, and housekeeping functions.
Manufactured with a 5 V CMOS process, the device combines digital and analog circuitry. It includes an internal EEPROM for trimming timing and voltage, and programming is performed via an SMBus serial interface, allowing communication with microprocessors or microcontrollers.
The ADM1041 provides voltage control, current share, and housekeeping functions for single output in N+1 server power supplies.
Programming is done via an SMBus serial port that also allows communication with a microprocessor or microcontroller.
The OrFET disconnects the power supply from the load to prevent bringing down the load voltage supplied by redundant configurations.
