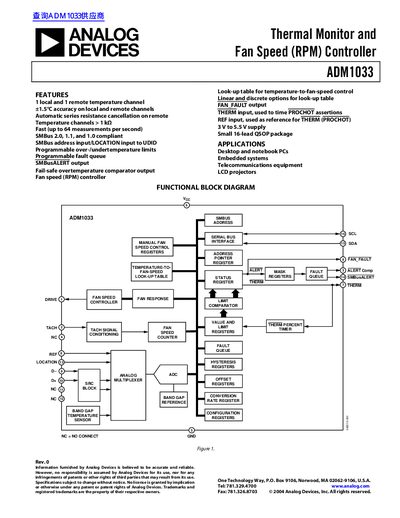

ADM1033 Rev. 0 is a thermal monitor and fan speed controller with 1 local and 1 remote temperature channel, automatic series resistance cancellation, fast measurement speed, programmable over-temperature limits and fault queue, as well as features such as fan speed control and temperature-to-fan-speed lookup table.
The ADM1033 is a device designed to monitor local and remote temperatures and control the speed of a cooling fan. It features a look-up table for temperature-to-fan-speed control, supporting both discrete and linear modes. The device communicates via a 2-wire SMBus 2.0 interface and includes an 8-level LOCATION input for SMBus version selection.
| Supply Voltage | 3.0 V to 3.6 V |
|---|---|
| Internal Sensor Accuracy | +1°C to +2°C |
| Resolution | 0.03125 °C |
| Conversion Time (Local) | 11 ms |
| Clock Frequency | 400 kHz |
| Package | 16-Lead QSOP |
The internal sensor accuracy is +1°C to +2°C between 20°C and 60°C.
Yes, the device communicates over a 2-wire SMBus 2.0 interface.
The maximum junction temperature is 150°C.
