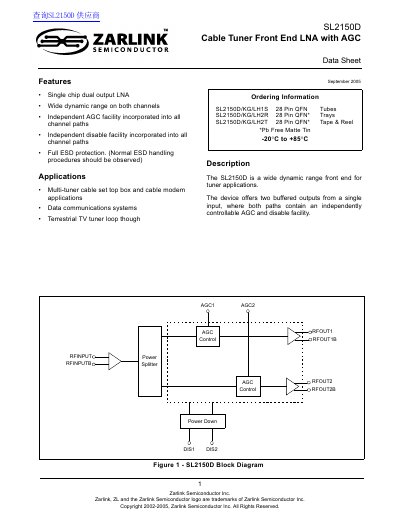

The SL2150D is a wide dynamic range front end for tuner applications. It offers two buffered outputs from a single input, where both paths contain an independently controllable AGC and disable facility.
The SL2150D is a wide dynamic range front-end device designed for tuner applications. It features two buffered outputs from a single input, where each channel includes an independently controllable AGC and disable facility. The device offers full ESD protection and operates within a temperature range of -20°C to +85°C.
| RF input operating range | 50-860 MHz |
|---|---|
| Input NF (both paths enabled at maximum gain) | 6.4 dB |
| CTB (all gain settings) | -66 dBc |
| CSO (all gain settings) | -64 dBc |
| CXM (all gain settings) | -60 dBc |
| Input impedance | 75 Ω |
| Input to output isolation | 30 dB |
The device operates within a temperature range of -20°C to +85°C.
Yes, the device features full ESD protection.
