Zarlink KESTX01 ASK Transmitter IC Datasheet

The KESTX01 is a single chip ASK (Amplitude Shift Key) transmitter IC. It is designed to operate in a variety of low power radio applications including keyless entry, general domestic and industrial remote control, RF tagging and local paging systems.

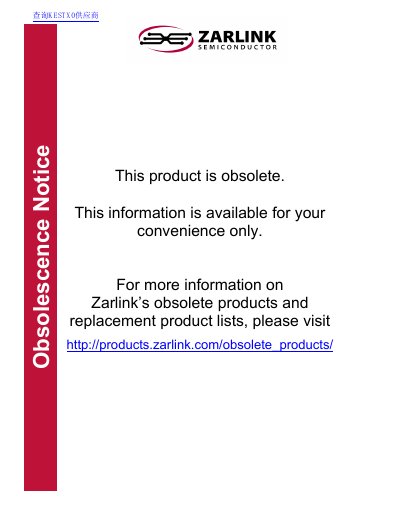

Zarlink KESTX01 ASK Transmitter IC Datasheet - cover page
Brand
Zarlink
Category
Other device
Document type
Datasheet
Language
English
Pages
10
File format
PDF
File size
263 KB
Published
09 May, 2012
Updated
30 September, 2023
MD5 checksum
8F370322050FFD6A12654311ECC3453F

About this manual

The KESTX01 is a single‑chip ASK (Amplitude Shift Key) transmitter IC designed for low‑power radio applications such as keyless entry, remote control, RF tagging and paging. It integrates a crystal reference oscillator, a frequency‑multiplying PLL and a power‑amplifier stage, operating around the 433.92 MHz band while emphasizing low quiescent current and a power‑down mode to extend battery life.

Key features include low supply current, adjustable output power via the PWRC pin, a fully integrated VCO, PLL and PA, and a balanced open‑collector output that can drive a PCB loop antenna directly. Electrical specifications cover supply voltage 3.5‑6.5 V, junction temperature –55 °C to +150 °C, and typical standby current of 0.7 µA. The device provides configurable output current and extinction ratio, and includes testability provisions for production testing.

What's inside

  • Features
  • Ordering Information
  • Electrical Characteristics
  • Pin Listing
  • Function
  • Power Up
  • Applications Information
  • Component List
  • Testability Requirements
  • Obsolescence Notice

Specifications

Supply voltage (VCC)3.5 V to 6.5 V
Junction temperature-55 °C to +150 °C
Standby supply current (I_CC1)0.7 µA
Output current at IF150 (typical)3.8 mA pk‑pk
Extinction ratio40 dB
VCO operating frequency range400 MHz – 460 MHz
Phase detector gain≈8 µA/rad
PWRC bias voltage1.20 V (nominal)

Frequently asked questions

What is the operating frequency range of the KESTX01?

The integrated VCO operates from 400 MHz to 460 MHz, and the device is typically used at a final output of 433.92 MHz.

How is the output power adjusted?

Output power is set by the bias current on the PWRC pin, which is controlled by an external resistor; the bias voltage is nominally 1.20 V.

What is the maximum supply voltage the device can tolerate?

The absolute maximum rating for any pin voltage is VEE‑0.5 V to VCC+0.5 V, with VEE allowed up to +8.0 V.

What crystal frequency is required for a 433.92 MHz output?

A crystal of 6.78 MHz is required to generate the 433.92 MHz output frequency.
