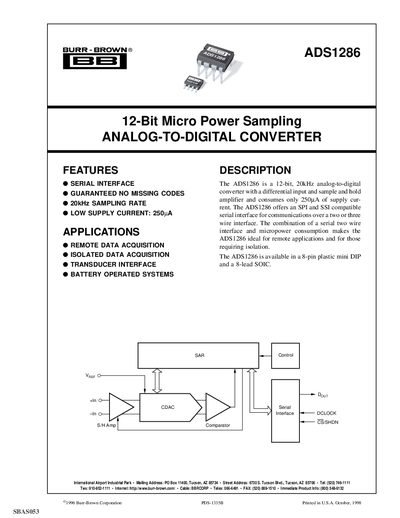

The ADS1286 is a 12-bit, 20kHz analog-to-digital converter with a differential input and sample and hold amplifier and consumes only 250µA of supply current. The ADS1286 offers an SPI and SSI compatible serial interface for communications over a two or three wire interface. The combination of a serial two wire interface and micropower consumption makes the ADS1286 ideal for remote applications and for those requiring isolation. The ADS1286 is available in a 8-pin plastic mini DIP and a 8-lead SOIC.
The ADS1286 is a 12‑bit, 20 kHz analog‑to‑digital converter with a serial SPI/SSI interface and ultra‑low supply current, making it suitable for remote and battery‑operated data‑acquisition applications. It offers guaranteed no‑missing‑code operation, differential inputs, and a variety of package options.
The datasheet lists detailed electrical specifications, absolute maximum ratings, pin configurations, typical performance curves, timing diagrams, and package ordering information. It also includes a notice from Texas Instruments regarding product updates and usage restrictions.
| Resolution | 12 bits |
|---|---|
| Maximum Sampling Rate | 20 kHz |
| Quiescent Current | 250 µA |
| Absolute Input Voltage | +In 0.2 V, –In 0.2 V |
| Power Supply Voltage | 4.5‑5.25 V |
| Package Options | 8‑Pin Mini PDIP, 8‑Lead SOIC |
The ADS1286 can sample at up to 20 kHz.
It draws about 250 µA of quiescent current.
The device is offered in an 8‑pin mini‑PDIP and an 8‑lead SOIC package.
