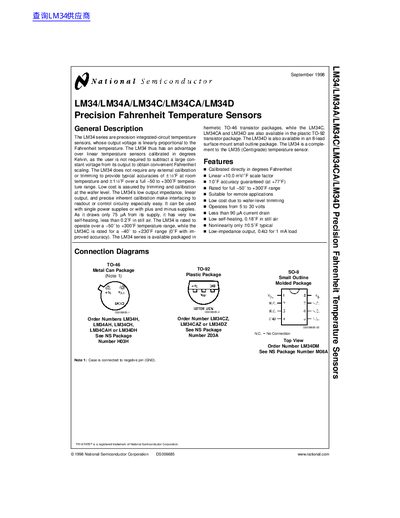

LM34/LM34A/LM34C/LM34CA/LM34D Precision Fahrenheit Temperature Sensors
The LM34 series are precision integrated-circuit temperature sensors whose output voltage is linearly proportional to the Fahrenheit temperature. They do not require external calibration or trimming to provide typical accuracies of ±2°F at room temperature and ±4°F over a full -50 to +300°F temperature range. The series includes variants in hermetic TO-46, plastic TO-92, and surface mount packages.
| Scale Factor | 10.0 mV/°F |
|---|---|
| Accuracy (Typical) | ±2°F at room temperature |
| Operating Temperature Range | -50 to +300°F |
| Supply Voltage | 5 to 30 volts |
| Quiescent Current | 75 µA |
| Self-Heating | 0.18°F in still air |
| Output Impedance | 0.49 ohms |
The output voltage is linearly proportional to the Fahrenheit temperature with a scale factor of 10.0 mV/°F.
The typical accuracy is ±2°F at room temperature.
The device operates from a minimum supply voltage of 5 volts.
No, the device does not require any external calibration or trimming.
