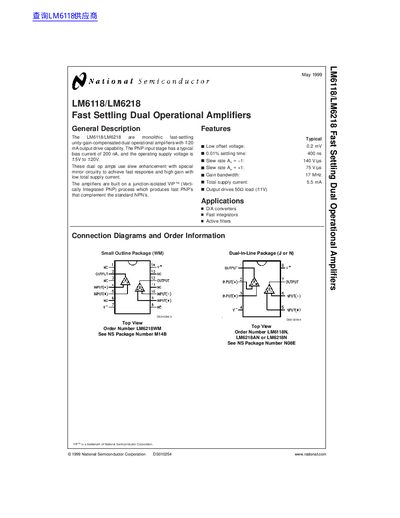

LM6118/LM6218 are monolithic fast-settling unity-gain-compensated dual operational amplifiers with ±20 mA output drive capability. The PNP input stage has a typical bias current of 200 nA, and the operating supply voltage is ±5V to ±20V. These dual op amps use slew enhancement with special mirror circuitry to achieve fast response and high gain with low total supply current. The amplifiers are built on a junction-isolated VIP™ (Verti- cally Integrated PNP) process which produces fast PNP’s that complement the standard NPN’s.
The LM6118/LM6218 are monolithic, unity-gain-compensated dual operational amplifiers designed for high-speed applications. They utilize a PNP input stage with a typical bias current of 200 nA and operate on supply voltages from +5V to +20V. These devices feature slew enhancement circuitry to achieve fast response times while maintaining low total supply current.
| Input Offset Voltage (Typ) | 0.2 mV |
|---|---|
| Settling Time (0.01%) | 400 ns |
| Gain Bandwidth Product | 17 MHz |
| Total Supply Current | 5.5 mA |
| Output Drive Capability | +20 mA |
They are suitable for D/A converters, fast integrators, and active filters.
The absolute maximum total supply voltage is 42V.
The minimum 0.01% settling time is 400 ns.
The typical total supply current is 5.5 mA.
