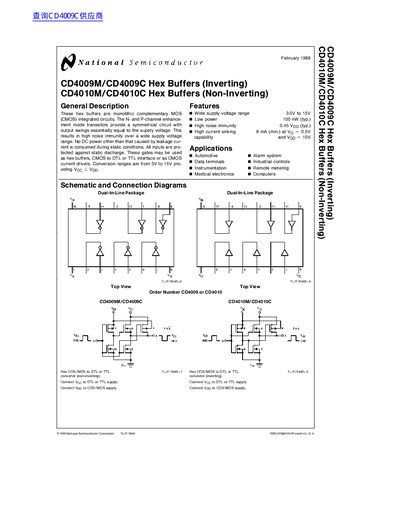

TL�F�5945 CD4009M�CD4009C Hex Buffers (Inverting) CD4010M�CD4010C Hex Buffers (Non-Inverting) are monolithic complementary MOS (CMOS) integrated circuits produced by TI. These circuits have high noise immunity and low power consumption. They can be used as hex buffers, CMOS to DTL or TTL interface or CMOS current drivers.
This document provides technical specifications for the CD4009M/CD4009C (inverting) and CD4010M/CD4010C (non-inverting) hex buffer integrated circuits. These monolithic complementary MOS devices operate over a wide supply voltage range from 3V to 15V and feature high noise immunity and low power consumption.
| Supply Voltage Range | 3.0V to 15V |
|---|---|
| Quiescent Current (CD40XXM) | 5 pA (Max) |
| Output Drive Current (N-Channel) | 8 mA (Min) |
The devices operate over a wide supply voltage range from 3.0V to 15V.
No, they are not authorized for use in life support devices without express written approval.
