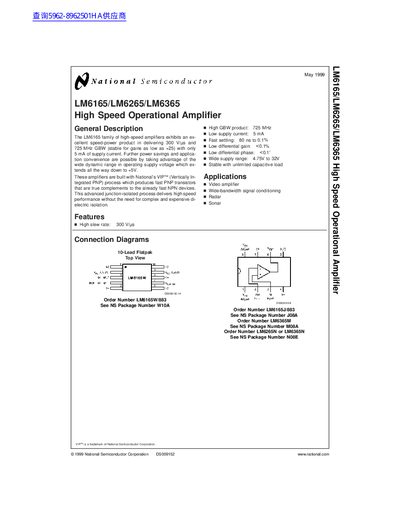

The LM6165 family of high-speed amplifiers delivers an excellent speed-power product with a speed of 300 V/µs and a gain bandwidth product of 725 MHz (stable for gains as low as +25) with only 5 mA of supply current. These amplifiers are built using National's VIP™ (Vertically Integrated PNP) process, which produces fast PNP transistors that are true complements to the already fast NPN devices. This advanced junction-isolated process provides high-speed performance without the need for complex and expensive dielectric isolation.
The LM6165 family of high-speed amplifiers delivers an excellent speed-power product with a gain-bandwidth (GBW) of 725 MHz and a slew rate of 300 V/µs while maintaining low supply current. These devices are built using National's VIP™ process to provide fast PNP transistors that complement fast NPN devices, ensuring high-speed performance without complex dielectric isolation.
| Slew Rate | 300 V/µs (Typical) |
|---|---|
| Gain Bandwidth Product | 725 MHz |
| Supply Current | 5 mA (Typical) |
| Settling Time | 80 ns to 0.1% |
| Supply Voltage Range | 4.75V to 32V |
| Input Offset Voltage (LM6165) | 1 mV (Typical) |
| Gain Bandwidth Product (Supply = +5V) | 500 MHz |
| Input Noise Voltage Density | 5 nV/√Hz at 10 kHz |
The typical supply current is 5 mA.
Yes, it is stable with unlimited capacitive load.
Applications include video amplifier, wide-bandwidth signal conditioning, radar, and sonar.
