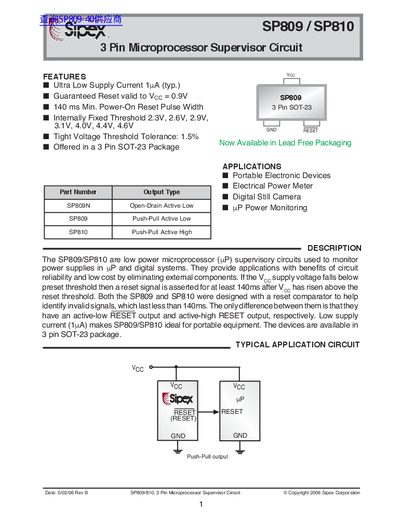

SP809/SP810 are low power microprocessor (µP) supervisory circuits used to monitor power supplies in µP and digital systems. They provide applications with benefits of circuit reliability and low cost by eliminating external components. If the VCC supply voltage falls below preset threshold then a reset signal is asserted for at least 140ms after VCC has risen above the reset threshold. Both the SP809 and SP810 were designed with a reset comparator to help identify invalid signals, which last less than 140ms. The only difference between them is that they have an active-low RESET output and active-high RESET output, respectively. Low supply current (1µA) makes SP809/SP810 ideal for portable equipment. The devices are available in 3 pin SOT-23 package.
The document describes the Sipex SP809/SP810, which are low power microprocessor supervisory circuits designed to monitor power supplies in uP and digital systems. These devices provide circuit reliability by eliminating external components; if the Vcc supply voltage falls below a preset threshold, a reset signal is asserted for at least 140ms after the voltage rises above that threshold.
| Supply Current (Typical) | 1uA |
|---|---|
| Reset Pulse Width (Min) | 140 ms |
| Operating Voltage Range | 0.9V to 6.0V |
| Supply Current (Max) | 3.0 uA |
| Operating Junction Temperature | -40°C to +85°C |
The device provides a guaranteed reset valid for at least 140ms after Vcc has risen above the reset threshold.
The SP809/SP810 features an ultra-low supply current of 1uA (typical).
The devices operate with a supply voltage ranging from 0.9V to 6.0V.
