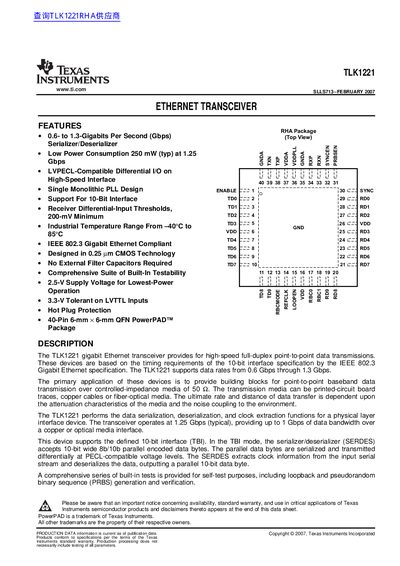

The TLK1221 gigabit Ethernet transceiver is a high-speed full-duplex point-to-point data transmission device. Its features include: support for data rates from 0.6 to 1.3 Gbps; low power consumption, with typical power consumption of 250 mW at 1.25 Gbps; LVPECL-compatible differential I/O interface; single monolithic PLL design; support for 10-bit interface; receiver differential-input thresholds with a minimum of 200 mV; operating temperature range from -40°C to 85°C; IEEE 802.3 gigabit Ethernet compliant; designed in 0.25µm CMOS technology; no external filter capacitors required; comprehensive suite of built-in testability; 2.5V supply voltage for lowest-power operation; 3.3V tolerant on LVTTL inputs; hot plug protection; 40-pin 6mm × 6mm QFN PowerPAD™ package.
The TLK1221 is a gigabit Ethernet transceiver designed for high-speed full-duplex point-to-point data transmissions. It supports data rates from 0.6 Gbps through 1.3 Gbps and operates based on the IEEE 802.3 Gigabit Ethernet 10-bit interface specification. The device performs data serialization, deserialization, and clock extraction functions, accepting 10-bit wide 8b/10b encoded data bytes and transmitting them differentially at LVPECL-compatible voltage levels.
| Data Rate | 0.6 to 1.3 Gbps |
|---|---|
| Package | 40-Pin 6-mm x 6-mm QFN PowerPAD |
Yes, the device is designed to be hot-plug capable.
The device uses a 2.5-V supply voltage.
