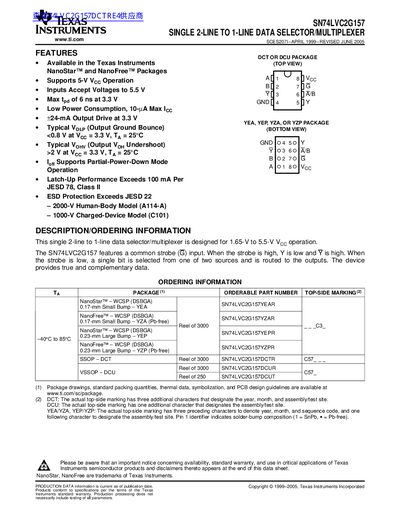

The SN74LVC2G157 is a single 2-line to 1-line data selector/multiplexer from Texas Instruments (TI) designed for 1.65-V to 5.5-V VCC operation. It features a common strobe (G) input. When the strobe is high, Y is low and Y is high. When the strobe is low, a single bit is selected from one of two sources and is routed to the outputs. The device provides true and complementary data.
The document describes the SN74LVC2G157, a single 2-line to 1-line data selector/multiplexer designed for 1.65-V to 5.5-V operation. It features a common strobe input and provides true and complementary data outputs. The device supports various packages including NanoStar™, NanoFree™, SSOP, and VSSOP.
| Max Input Voltage | 5.5 V |
|---|---|
| Max Output Drive Current (3.3V) | 24 mA |
| Operating Temperature Range | -40°C to 85°C |
The device supports data retention only at a supply voltage of 1.5 V.
Yes, it features circuitry that disables outputs to prevent damaging current backflow when powered down.
