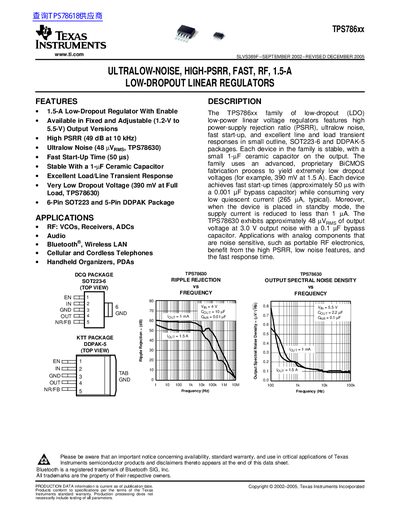

The TPS786xx family is a low-dropout linear voltage regulator with high PSRR, ultralow noise, fast start-up, and excellent line and load transient response.
The TPS786xx family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in small outline, SOT223-6 and DDPAK-5 packages. Each device in the family is stable with a small 1-uF ceramic capacitor on the output.
| Output noise voltage (TPS78630) | 48 uVrms |
|---|---|
| Start-up time (TPS78630) | 110 us |
| Shutdown current | 1 uA |
The devices are available in Fixed and Adjustable (1.2-V to 5.5-V) Output Versions.
The dropout voltage is 390 mV at 1.5 A load.
The devices are available in 6-Pin SOT223 and 5-Pin DDPAK Package.
