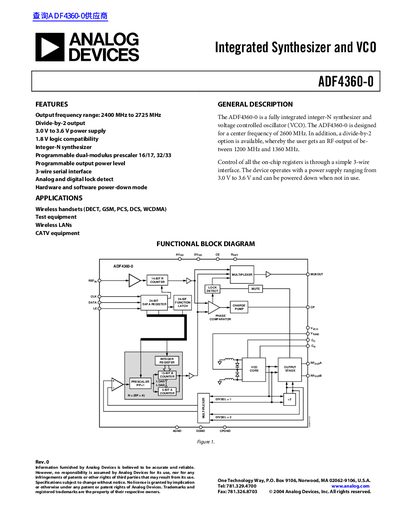

The ADF4360-0 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO) designed for wireless handsets and test equipment.
The ADF4360-0 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO) designed for a center frequency of 2600 MHz, with an optional divide-by-2 output. The device features a programmable dual-modulus prescaler, analog and digital lock detect, and operates with a power supply ranging from 3.0 V to 3.6 V.
| Output frequency range | 2400 MHz to 2725 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Logic compatibility | 1.8 V |
| Operating temperature range | -40°C to +85°C |
The device operates within a temperature range from -40°C to +85°C.
The phase detector supports a maximum frequency of 8 MHz.
