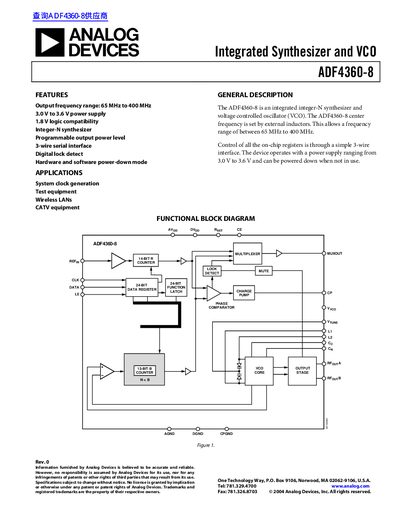

The ADF4360-8 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO) from ADI company. The center frequency is set by external inductors, with a frequency range of 65 MHz to 400 MHz. All on-chip registers are controlled through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
The ADF4360-8 is an integrated integer-N synthesizer and voltage-controlled oscillator (VCO) designed for system clock generation, test equipment, wireless LANs, and CATV applications. The device operates with a power supply ranging from 3.0 V to 3.6 V and features 1.8 V logic compatibility.
| Output frequency range | 65 MHz to 400 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Operating temperature range | -40°C to +85°C |
| Phase Detector Frequency | 8 MHz max |
| Lock Time | 400 us typ |
The output power variation is +3 dB typical.
Yes, the device features 1.8 V logic compatibility.
