This document is a technical specification for the ADM1023 evaluation board. It introduces the features and characteristics of the evaluation board, including functions, applications, power supply and package.

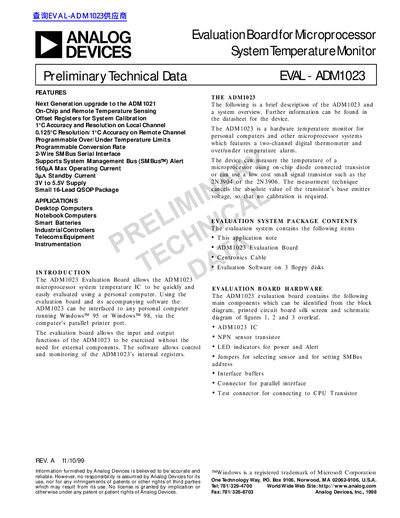

The document describes the Analog Devices EVAL-ADM1023, a hardware evaluation system for the ADM1023 microprocessor system temperature IC. The package includes the evaluation board, a Centronics cable, and software on three floppy disks designed to run under Windows 95 or Windows 98.
| Supply Voltage | 3V to 5.5V |
|---|---|
| Max Operating Current | 160A |
| Standby Current | 3A |
| Package Type | 16-Lead QSOP |
The software operates under Windows 95 or Windows 98.
It connects via the computer's parallel printer port using the provided Centronics cable.
The package includes this application note, the ADM1023 Evaluation Board, a Centronics Cable, and software on 3 floppy disks.
