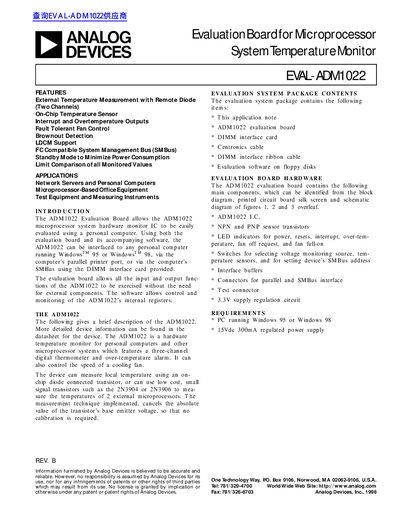

The ADM1022 Evaluation Board is designed for evaluating the ADM1022 microprocessor system hardware monitor IC. The evaluation board features external temperature measurement, interrupt and overtemperature outputs, fault tolerant fan control, and more.
The document provides an overview of the EVAL-ADM1022 evaluation board designed for the ADM1022 hardware temperature monitor. It details the board's capabilities, such as external temperature measurement with remote diodes, on-chip sensing, interrupt outputs, and fault-tolerant fan control. The board is compatible with System Management Bus (SMBus) or can be interfaced via a parallel printer port.
The ADM1022 can be interfaced to a personal computer running Windows 95 or Windows 98.
A regulated power supply of 15V at 300mA is needed.
The device can use low cost, small signal transistors such as the 2N3904 or 2N3906.
