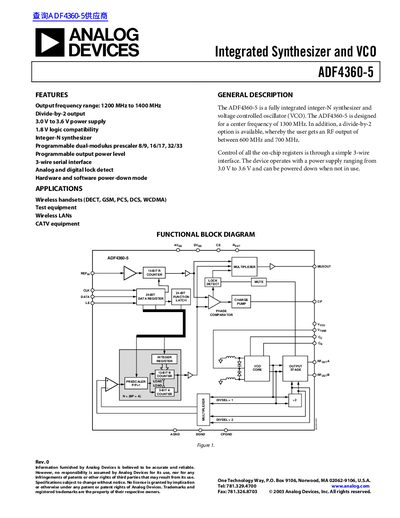

The ADF4360-5 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). It is designed for a center frequency of 1300 MHz. It features a programmable dual-modulus prescaler, programmable output power level, 3-wire serial interface, and more.
The ADF4360-5 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO) designed for a center frequency of 1300 MHz. It features an output frequency range from 1200 MHz to 1400 MHz, with an optional divide-by-2 configuration providing RF outputs between 600 MHz and 700 MHz.
The device operates using a simple 3-wire serial interface for controlling on-chip registers. It is powered by a supply voltage ranging from 3.0 V to 3.6 V, with logic compatibility at 1.8 V. Key features include programmable dual-modulus prescalers (8/9, 16/17, 32/33), programmable output power levels, and both hardware and software power-down modes.
| Output Frequency Range | 1200 MHz to 1400 MHz |
|---|---|
| Power Supply Voltage | 3.0 V to 3.6 V |
| Logic Compatibility | 1.8 V |
| VCO Sensitivity | 31 MHz/V typ |
| Lock Time | 400 us typ |
The device provides an output frequency ranging from 1200 MHz to 1400 MHz.
The device operates with a power supply ranging from 3.0 V to 3.6 V.
The phase detector supports a maximum frequency of 8 MHz.
