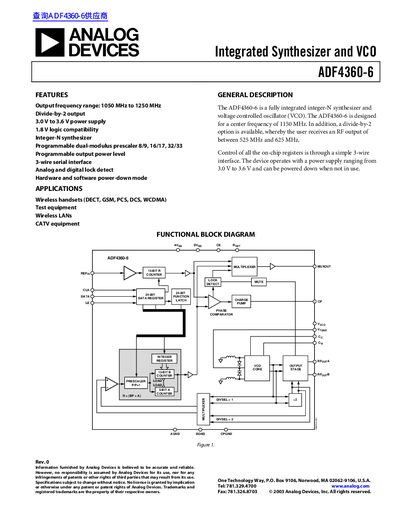

This document is a detailed datasheet for Analog Devices ADF4360-6. It is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-6 is designed for a center frequency of 1150 MHz. In addition, a divide-by-2 option is available, whereby the user receives an RF output of between 525 MHz and 625 MHz. Control of all the on-chip registers is through a simple 3-wire interf
The ADF4360-6 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO) designed for a center frequency of 1150 MHz. It features an output frequency range from 1050 MHz to 1250 MHz with a divide-by-2 option available, operating with a power supply ranging from 3.0 V to 3.6 V.
| Output frequency range | 1050 MHz to 1250 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Logic compatibility | 1.8 V |
| VCO Sensitivity | 32 MHz/V typ |
| Lock Time | 400 us typ |
The device provides an output frequency ranging from 1050 MHz to 1250 MHz.
The unit requires a 3.0 V to 3.6 V power supply and supports 1.8 V logic compatibility.
The phase detector operates with a maximum frequency of 8 MHz.
