The document describes the features and characteristics of the ATF16V8B high-performance CMOS programmable logic device, including industry-standard architecture, high-speed electrically erasable programmable logic devices, several power-saving options, CMOS and TTL compatible inputs and outputs, advanced Flash technology, high reliability CMOS process, etc.

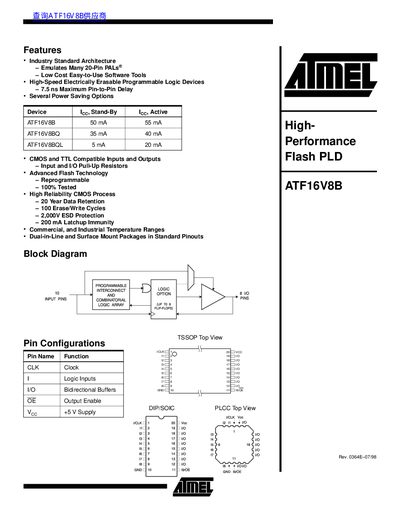

The document describes the Atmel ATF16V8B, a high-performance CMOS Programmable Logic Device (PLD). It utilizes Atmel's proven electrically erasable Flash memory technology to offer speeds down to 7.5 ns maximum pin-to-pin delay. The device is designed to emulate many 20-pin PALs and incorporates a superset of generic architectures for direct replacement of the 16R8 family.
| Maximum Pin-to-Pin Delay | 7.5 ns |
|---|---|
| Data Retention | 20 Year |
| Erase/Write Cycles | 100 |
| ESD Protection | 2,000V |
| Latchup Immunity | 200 mA |
The device offers speeds down to a maximum pin-to-pin delay of 7.5 ns.
The device supports up to 100 erase/write cycles.
