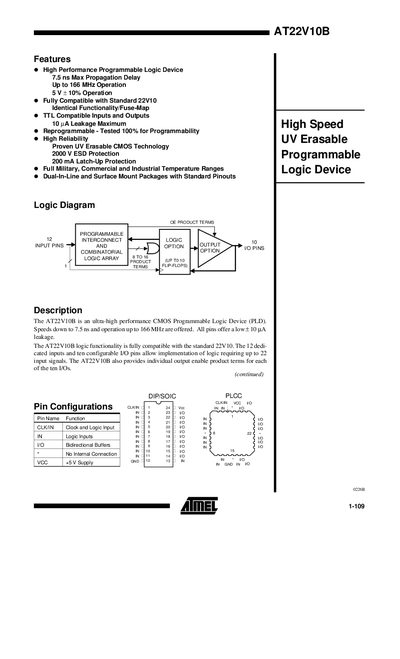

The AT22V10B is an ultra-high performance CMOS Programmable Logic Device (PLD). Speeds down to 7.5 ns and operation up to 166 MHz are offered. All pins offer a low ± 10 µA leakage. The AT22V10B logic functionality is fully compatible with the standard 22V10. The 12 dedi- cated inputs and ten configurable I/O pins allow implementation of logic requiring up to 22 input signals. The AT22V10B also provides individual output enable product terms for each of the ten I/Os. (continued)
The AT22V10B is an ultra-high performance CMOS Programmable Logic Device (PLD) featuring speeds down to 7.5 ns and operation up to 166 MHz. It offers full compatibility with the standard 22V10, providing 12 dedicated inputs and ten configurable I/O pins to implement logic requiring up to 22 input signals. The device includes a variable product term architecture with eight to 16 product terms per output, along with synchronous preset and asynchronous reset capabilities.
| Max Propagation Delay | 7.5 ns |
|---|---|
| Max Operation Frequency | 166 MHz |
| Operating Voltage | 5 V + 10% |
| Leakage Current | 10 uA |
| ESD Protection | 2000 V |
| Latch-Up Protection | 200 mA |
| Operating Temperature (Commercial) | 0°C to 70°C |
| Input High Voltage | 2.0 V |
The device supports operation up to 166 MHz.
Yes, it is fully compatible with the standard 22V10 in terms of functionality and fuse-map.
The maximum leakage current is 10 uA.
Complete erasure is assured after a minimum of 20 minutes exposure using 12,000 uW/cm² intensity lamps.
