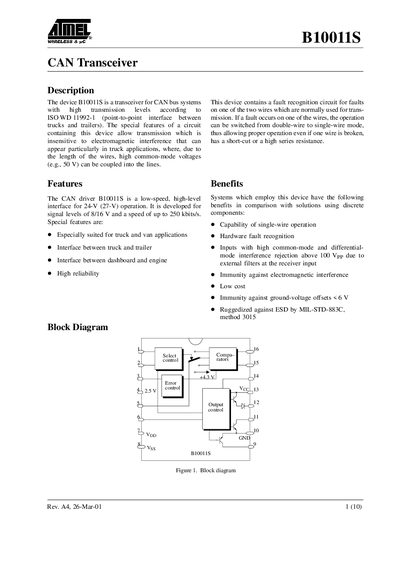

B10011S is a CAN bus system transceiver with high output voltage. It is designed for point-to-point interface between truck and trailer according ISO WD 11992-1
The AIMEL B10011S is a transceiver for CAN bus systems with high transmission levels according to ISO WD 11992-1. It is specifically developed for signal levels of 8/16 V and speeds up to 250 kbits/s, making it especially suited for truck and van applications where electromagnetic interference can be significant.
The device features a fault recognition circuit that allows the system to switch from double-wire to single-wire mode if a wire breaks or has high resistance. It offers inputs with high common-mode and differential-mode interference rejection above 100 Vpp due to external filters at the receiver input.
| Supply voltage (vehicle) | 7 to 32 V |
|---|---|
| Controller supply voltage | 4.75 to 5.25 V |
| Operating speed | up to 250 kbits/s |
| Signal levels | 8/16 V |
| Operating temperature range | -40 to +105 °C |
| Junction temperature max | 150 °C |
It is especially suited for truck and van applications, serving as an interface between a dashboard and engine.
Yes, it contains a fault recognition circuit that allows operation to be switched from double-wire to single-wire mode.
The device operates within a temperature range of -40 to +105 °C.
