2SC1213A(K) is a NPN type transistor produced by Sanyo, and its application scenarios include low frequency amplifiers and medium speed switches. Its typical package is TO-92.

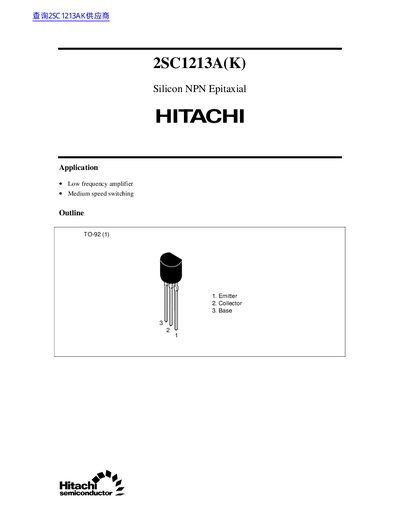

This document is a technical datasheet for the Hitachi 2SC1213A(K), a Silicon NPN Epitaxial transistor packaged in TO-92. The device is designed for applications such as low-frequency amplifiers and medium-speed switching circuits.
The datasheet provides comprehensive electrical characteristics, including absolute maximum ratings like collector current (500 mA) and power dissipation (400 mW). It also details typical performance curves for output characteristics, transfer characteristics, and switching times versus collector current.
| Package Type | TO-92 (1) |
|---|---|
| Collector Current | 500 mA |
| Collector Power Dissipation | 400 mW |
| Junction Temperature | 150 °C |
| Collector to Base Breakdown Voltage | 50 V |
| Gain Bandwidth Product | 120 MHz |
The device is suitable for low frequency amplifier and medium speed switching applications.
No, this product is not designed to be radiation resistant.
