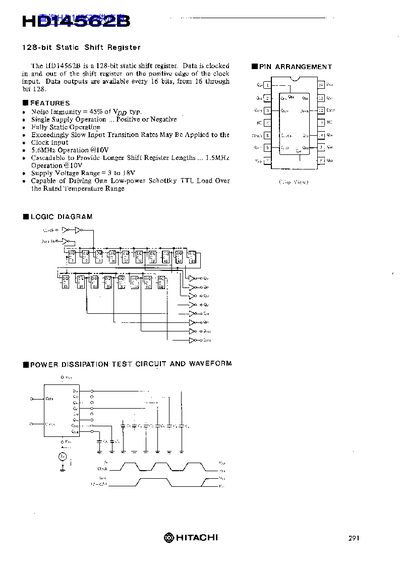

This document is the HD14562B datasheet
The document describes the Hitachi HD14562B, a 128-bit static shift register designed for data shifting on the positive edge of the clock input. It supports single supply operation with a voltage range of 3 to 18V and can be cascaded to provide longer shift register lengths.
| Number of bits | 128-bit |
|---|---|
| Supply Voltage Range | 3 to 18V |
The device can operate at a clock frequency of up to 5.6 MHz.
This is a 128-bit static shift register.
The device operates with a supply voltage between 3 and 18 volts.
