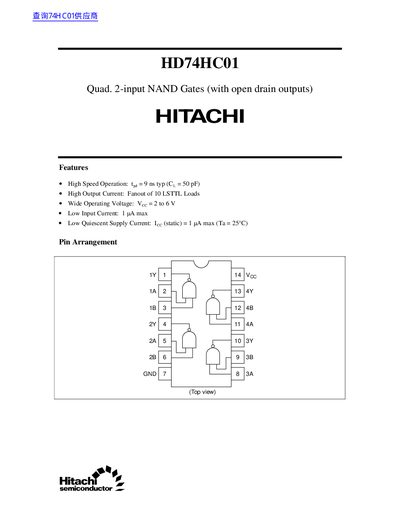

HD74HC01 is a quad 2-input NAND gate with open drain outputs. This product features high speed operation, high output current, wide operating voltage, low input current and low quiescent supply current.
This document is a technical datasheet for the Hitachi HD74HC01, an integrated circuit featuring four 2-input NAND gates with open-drain outputs. The device supports high-speed operation with a typical propagation delay of 9 ns at 5V and operates within a wide voltage range of 2 to 6 volts.
| Propagation delay (typical) | 9 ns typ |
|---|---|
| Operating voltage range | 2 to 6V |
| Input current (max) | 1 uA max |
| Quiescent supply current (static) | 1 uA max |
The typical propagation delay time is 9 ns when the capacitance is 50 pF.
The device operates with a supply voltage between 2 V and 6 V.
The maximum input current is 1 uA.
