1SS305 is a high-speed switching silicon epitaxial diode produced by NEC. It has the characteristics of low capacitance, high switching speed, and wide applications in switching, limiter, clipper, etc.

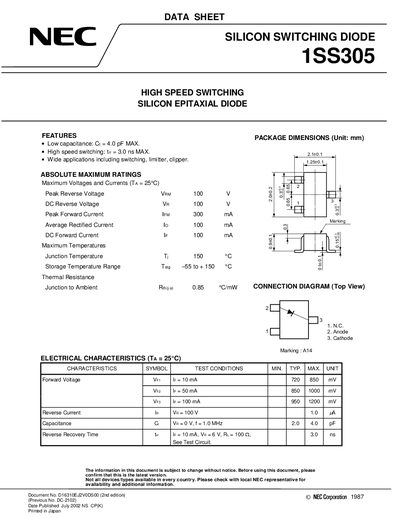

This datasheet details the electrical characteristics and absolute maximum ratings for the NEC 1SS305 silicon switching diode. It includes parameters such as forward voltage, reverse current, capacitance, and reverse recovery time. The diode is suitable for switching, limiting, and clipping applications.
The document also provides typical characteristics graphs and test circuits for reverse recovery time, along with quality grade classifications for different application areas.
| Capacitance | 4.0 pF MAX. |
|---|---|
| Reverse Recovery Time | 3.0 ns MAX. |
| Peak Reverse Voltage | 100 V |
| Peak Forward Current | 300 mA |
The peak reverse voltage is 100 V.
The reverse recovery time is 3.0 ns maximum.
The quality grades are "Standard", "Special", and "Specific", each for different application areas.
