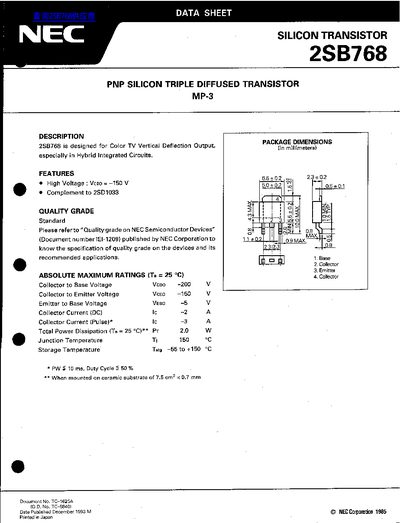

This document is a technical datasheet for the NEC 2SB768, a PNP silicon triple diffused transistor. It is specifically designed for use in Color TV Vertical Deflection Output applications, particularly within Hybrid Integrated Circuits.
The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain and cutoff currents, typical performance graphs, safe operating area derating curves, and package dimensions. It also lists recommended application notes and specifies the standard quality grade for this device.
| Collector to Base Voltage (VcBo) | -200 V |
|---|---|
| Collector to Emitter Voltage (VcEO) | -150 V |
| Emitter to Base Voltage (VEBO) | +5 V |
| Collector Current (DC) Ic | -2 A |
| Total Power Dissipation Pr | 2.0 W |
| Junction Temperature Tj | 150 °C |
It is designed for Color TV Vertical Deflection Output, especially in Hybrid Integrated Circuits.
The device has a Standard quality grade.
