The EE2 series surface-mounting type relay has the features of small size, light weight, 2 form c contact arrangement, low power consumption, reduced mounting space (15 mm × 9.5 mm), high breakdown voltage of coil to contacts (1500 Vac, 2500 V, rise time: 2 µs, fall time: 10 µs), low power consumption: 100 to 140 mW, capable of high-power switching (700 Vac, 4.2 A, 4 times in case of accident), UL recognized (E73266), CAS certified (LR46266). It is mainly used in electronic switching systems, PBX, terminal equipment, telephone systems, etc.

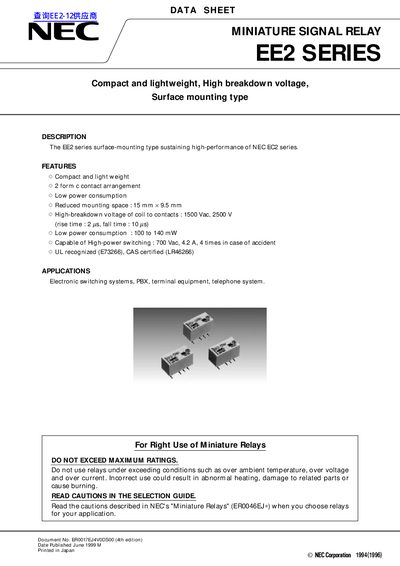

This document is a datasheet for the NEC EE2 series of miniature signal relays. These are compact, lightweight, high-breakdown voltage devices designed for surface mounting. The series includes non-latch types as well as single-coil and double-coil latch types suitable for various electronic switching systems.
| Contact Form | 2Formc |
|---|---|
| Maximum Switching Power (UL/CSA) | 60 W, 125 VA |
| Maximum Switching Voltage | 220 Vdc, 250 Vac |
| Maximum Switching Current | 2A |
| Ambient Temperature Range | -40 to 85°C |
| Coil Power Consumption (Non-Latch) | 140 mW at 3-12V, 200 mW at 24V |
| Operating Time (Non-Latch) | Approx. 2ms |
They are used in electronic switching systems, PBXs, terminal equipment, and telephone systems.
The high-breakdown voltage is 1500 Vac with a rise time of 2 µs and fall time of 10 µs.
