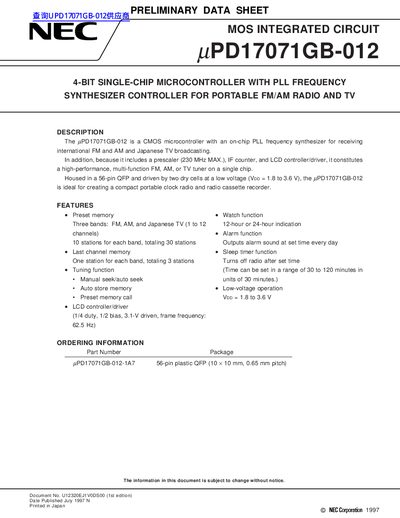

The µPD17071GB-012 is a CMOS microcontroller with an on-chip PLL frequency synthesizer for receiving international FM and AM and Japanese TV broadcasting. In addition, because it includes a prescaler (230 MHz MAX.), IF counter, and LCD controller/driver, it constitutes a high-performance, multi-function FM, AM, or TV tuner on a single chip.
The NEC uPD17071GB-012 is a CMOS microcontroller featuring an on-chip PLL frequency synthesizer designed for receiving international FM, AM, and Japanese TV broadcasting. It integrates functions such as a prescaler (up to 230 MHz), IF counter, and LCD controller/driver into a single chip.
| Package Type | 56-pin plastic QFP (10 x 10 mm, 0.65 mm pitch) |
|---|---|
| Operating Voltage | 1.8 to 3.6 V |
| Max Prescaler Frequency | 230 MHz |
| LCD Controller Duty Cycle | 1/4 duty, 1/2 bias |
It supports FM, AM, and Japanese TV (channels 1 to 12).
The device stores 10 stations for each of the three bands.
It can turn off the radio after a set time ranging from 30 to 120 minutes.
