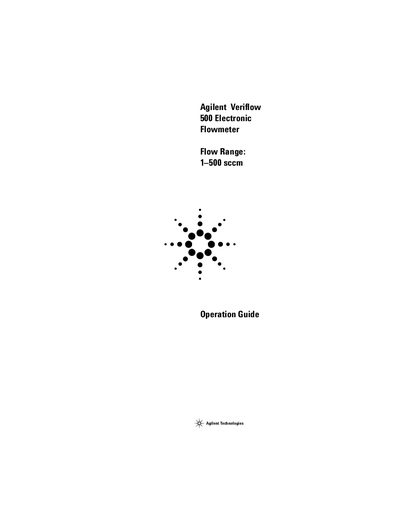

Agilent Veriflow 500 electronic flowmeter operation guide, which details the product's features and characteristics
This guide explains how to operate the Agilent Veriflow 500 electronic flowmeter, including setup, gas selection, flow mode settings, and calibration procedures. It covers safe usage with clean, dry, non-corrosive gases only and provides instructions for auto-zeroing and purging the system. The flowmeter uses mass flow technology for accurate readings unaffected by ambient pressure and temperature, calibrated to 22°C/760 Torr.
The guide also details the instrument’s three control buttons, flow modes (sccm, split ratio, cm/s), and compatibility with capillary column adapters. It includes safety warnings, warranty disclaimers, and instructions for battery charging and maintenance.
| Flow Range | 1-500 sccm |
|---|---|
| Calibration Standard | NIST traceable |
| Operating Temperature | +10 °F (-12 °C) from ordinary room temperature (17-27 °C or 60-80 °F) |
| Back Pressure at 500 sccm | 0.0144 psi (0.0993 kPa) |
The flowmeter is calibrated for He, N2, H2, air, and argon [95%] methane [5%].
The flow range is 1-500 sccm.
The maximum back pressure at 500 sccm is 0.0144 psi (0.0993 kPa).
