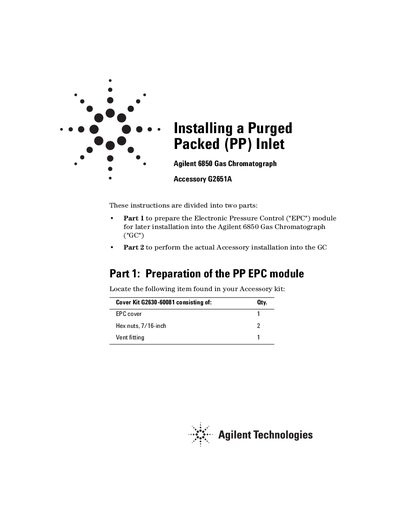

Agilent 6850 GC Purged Packed (PP) Inlet Installation Guide

About this manual

This document provides instructions for installing a Purged Packed (PP) Inlet accessory on an Agilent 6850 Gas Chromatograph. Part 1 covers preparing the Electronic Pressure Control (EPC) module, including assembling components and securing fittings. Part 2 details installing the PP inlet system, including connecting cables, securing components, and restoring instrument power and gas flows. Safety precautions and tool requirements are specified throughout.

What's inside

• Part 1: Preparation of the PP EPC module
• Tools Required for EPC Module
• Part 2: Installation of the PP Accessory
• Tools Required for Installation
• Safety Information
• Finishing Up

Frequently asked questions

What is the part number of the accessory installation guide?

Part number G2652-90108.

What tools are required to install the PP Accessory?

Torx™ T-10 driver, Torx T-20 driver, and open end wrenches.

What is the name of the accessory being installed?

Purged packed column inlet system.

What must be done before installing the PP Accessory?

Read the safety information on the Agilent 6850 Gas Chromatograph User Information CD-ROM.
