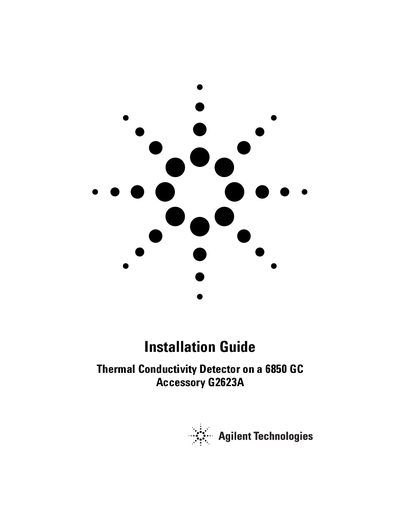

This document is a guide for installing the Thermal Conductivity Detector on a 6850 GC Accessory G2623A 2 from Agilent Technologies, Inc. It provides safety information and operating instructions.
This guide provides step-by-step instructions for installing the Agilent G2623A Thermal Conductivity Detector onto an Agilent 6850 Gas Chromatograph. It covers preparation of the EPC module and actual installation procedures. Safety precautions and ESD handling are emphasized. The document is dated February 2007 and replaces earlier versions.
Tools required include a Torx™ T-20 driver and 7/16-inch wrench. The guide includes diagrams and part numbers for components such as covers, grommets, and screws. It also specifies safety warnings and compliance with IEC standards.
Part number G2623-90108.
Safety Class 1.
Torx™ T-20 driver and 7/16-inch open end wrench or nut driver.
Sound pressure Lp < 68 dB(A).
