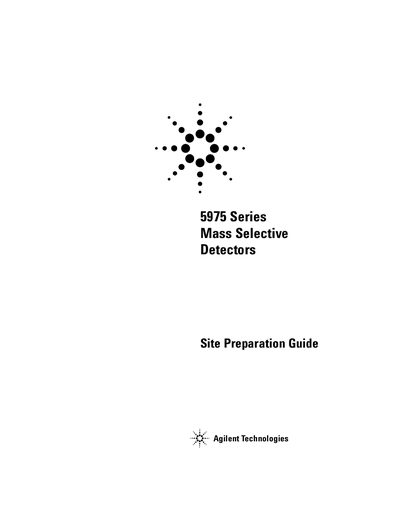

Introduced the Site Preparation Guide for Agilent Technologies 5975 Series Mass Selective Detectors
This guide outlines the necessary steps and safety precautions for preparing a site to install Agilent 5975 Series Mass Selective Detectors. It covers electrical requirements, environmental conditions, gas supply needs, and safety warnings including hazardous voltages and hot components. The guide also includes instructions for handling, unpacking, and verifying the instrument upon delivery.
The document provides detailed specifications for power, air conditioning, and chemical safety, as well as guidance on proper disposal and cleaning procedures. It is intended for users preparing to install or maintain these detectors, emphasizing safety and compliance with regulatory standards.
| Model Number | G3170A, G3171A, G3172A, G3174A |
|---|---|
| Voltage Fluctuation Tolerance | +5% or -10% from rated voltage |
| Environmental Category | Category II |
Many internal parts carry dangerous voltages; never remove covers unless instructed. Wear a grounded wrist strap to prevent electrostatic discharge. Avoid touching hot parts and use gloves and wrenches when necessary.
The instrument requires a stable power supply with voltage fluctuations no more than +5% or -10% from rated voltage. It must be installed in a Category II environment as defined in IEC 664.
Available models include 5975 VL MSD (G3170A), 5975 inert MSD (G3171A, G3172A), and 5975 inert XL MSD (G3174A), each with different ionization modes.
