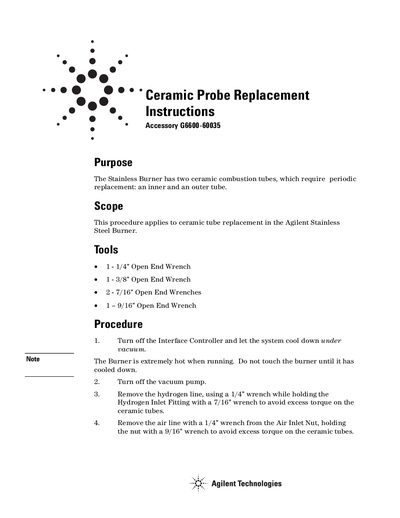

This document is the instructions for replacing ceramic tubes in Agilent Stainless Steel Burner, it introduces the steps of replacing ceramic tubes, including the tools used and the details of each step.
This service manual provides detailed instructions for replacing ceramic combustion tubes in the Agilent Stainless Steel Burner. It covers tools required, step-by-step procedures for disassembly and reassembly, and safety precautions to avoid damaging components. Special attention is given to torque control and alignment to ensure proper function and longevity of the burner.
The document includes diagrams and measurements for correct tube placement, and emphasizes hand-tightening of components to prevent ferrule damage or ceramic breakage. It concludes with steps for leak checking and burn-in procedures to prepare the burner for use.
1-1/4”, 1-3/8”, 2-7/16”, and 1-9/16” open end wrenches.
The inner ceramic tube should be centered inside the outer ceramic tube and both should be lined up straight in the middle of the assembly.
Gently tighten any loose connections. Do not use a wrench on the tower components.
