Describes how to replace the ozone generator

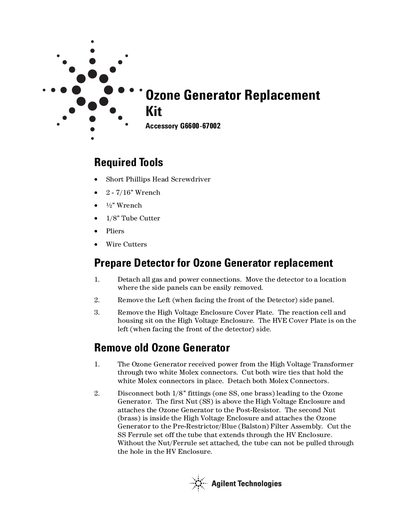

This service manual provides step-by-step instructions for replacing the ozone generator in Agilent G6600-67002 detectors. It details required tools, disassembly procedures, removal of the old generator, installation of the new unit, and reassembly. Safety precautions are included, such as ensuring electrical connections are properly isolated to prevent arcing. The manual also includes a test procedure to verify proper installation.
The document is formatted as a technical guide with clear diagrams and numbered steps. It includes copyright information and directs users to Agilent’s website for additional support.
Short Phillips Head Screwdriver, 2 - 7/16” Wrench, 1/8” Wrench, Tube Cutter, Pliers, Wire Cutters.
Take the detector out of standby mode, set the front panel to High Sensitivity Signal Display, turn on the vacuum pump, set the air/oxygen supply to 6 psi, then turn on the ozone. If the baseline signal does not increase, the generator may not be properly installed.
