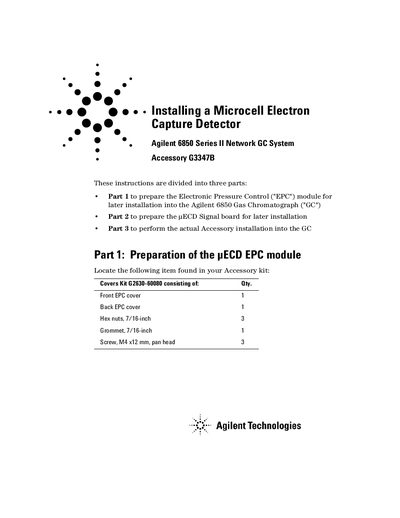

This document provides instructions on how to prepare the Electronic Pressure Control (EPC) module for later installation into the Agilent 6850 Gas Chromatograph (GC), prepare the µECD Signal board for later installation, and perform the actual Accessory installation into the GC. Part 1 involves the preparation of the µECD EPC module, which includes installing the front and back covers and other components. Part 2 involves the preparation of the µECD Signal board, specifically for installing the Microcell Electron Agilent 6850 Series II Network GC System Capture Detector Accessory G3347B. Part 3 involves the actual installation of the Accessory into the GC, following specific tools and procedures.
This guide provides instructions for installing a Microcell Electron Capture Detector accessory on an Agilent 6850 Gas Chromatograph. It is divided into three parts: preparing the EPC module, preparing the nECD Signal board, and performing the actual installation. The guide includes required tools, safety precautions, and step-by-step procedures for assembling and securing components. It also includes safety symbols and copyright information.
Part number G2630-90001.
Covers Kit G2630-60080.
A small, sharp pair of diagonal wire cutters.
Prepare a suitable clean, dry, static-free work area.
