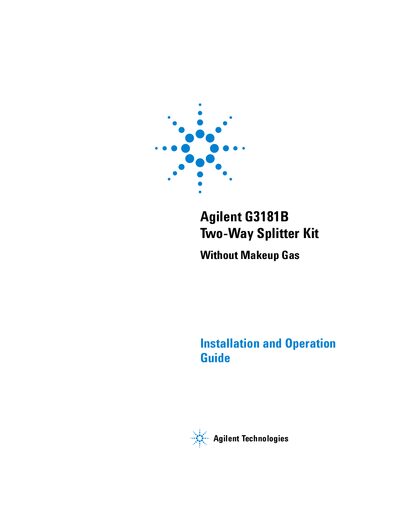

Agilent G3181B Two-Way Splitter Kit Installation and Operation Guide

About this manual

The Installation and Operation Guide explains how to install the Agilent G3181B two‑way splitter kit on an Agilent 6890 gas chromatograph and how to configure it for use with capillary columns. It describes the hardware components, required tools, and the software utilities that assist in designing split ratios.

Key sections cover the splitter’s operation principle, hardware installation procedures, restrictor and column setup, and various splitter configurations for atmospheric‑pressure detectors. The guide also includes part identification, a parts list, and an index for quick reference.

What's inside

• Introduction
• How It Works
• Hardware Installation
• Splitter Configurations
• Restrictor and Column Installation
• Parts Identification
• Index

Specifications

Frequently asked questions

Does the G3181B splitter include makeup gas?

No, the G3181B is a splitter without makeup gas.

What column flow rates are recommended for the G3181B splitter?

The splitter works best with column flows greater than 2 mL/min.
